I do not have air lockers or the ARB manifold kit. Most just focused on the metal bracket aspect.
Arb Compressor Aob Switch Install Page 2 Toyota 4runner Forum Largest 4runner Forum
ARB AIR COMPRESSOR Service and Parts Manual Revision Date 211217.
. Last week we created our own under seat mount for an ARB Dual Compressor. ARB does not recommend connecting the compressor in. I followed the wiring diagram to a tee.
Im trying to make the switch panel simple but full featured and still somewhat compact. First its only being used as a air compressor for my water wings. 100 drive to each wheel when the unit is locked up.
EDITED TO ADD In the interest of simplifying the wiring setup would this setup work. This step applies to the 12V solenoid that is packed with each ARB Air Locker differential. 3 of jumper wire anything 14-20 gauge.
Either way wiring it to an Spod is incredibly easy. Testing ARB Compressor Before Wiring. A 12-volt air compressor 24 volt also available engages the unit in approximately 1 second and can be engaged at any vehicle speed.
ARB Twin Compressor Ready to Run Wiring Harness. How I wired in my ARB Dual Compressor to my 2014 Jeep JK under the passenger seat. Remove one of the 1 8 BSPT plugs from its port in the compressor manifold using a 5mm hex key.
Low to High Price. The ARB installation instructions are pretty good but not specific to a Jeep. ARB CKMTP12 12V Twin Motor High Performance Portable Air Compressor.
Take to the air supply in a snorkel or other part of the air ducting for engine aspiration However if an extension tube is used to relocate the compressor intake to the engine intake supply then it must be understood that the negative. As i dont have a location to mount this kinda big switch. This week were going to wire it up.
Just uncertain how best to do it. If the compressor is to be used for an alternate purpose then simply skip this step and plug or terminate the ports as required by the application. Ill be showing you exactly which each wire goes no Painless or SwitchPros system needed.
I would prefer to leave the switch in the engine bay as I will only be using it for airing up tires. I could use a bit of help wiring up my shiny new ARB twin compressor and corresponding CH4x4 dash switch. Here is a link to an Spod sponsored video on wiring the ARB compressor.
ARB Maximum Output On-Board Compressor. I just received my ARB air compressor. Ive made looked online at instructions and havent really come up with any clear diagrams for the actual wiring part of the install.
I took advantage of a Black Friday deal and ordered the ARB twin compressor and an underhood mounting bracket plus the inflation kit. However when I flip on the compressor switch the button lights up and I hear a click at the. Many ARB distributors around the world have been fully instructed in Air Compressor installations by ARB and have gained a wealth of experience and skill from years of performing similar installations.
I was thinking about eliminating the switch for my ARB compressor. Im looking at the wiring diagram and wiring loom plus looking at the supplied ARM air compressor rocker switch. 11 Aug 31 2016.
ARB CKMTA12 12V On-Board Twin High Performance Air Compressor. The ARB Manifold will offer two additional ports for each of the locker solenoids. Planning out the wiring for a buggy build.
Joined May 24 2001. CKMP12 Air Compressor Exploded Parts Diagram CKMP12. 1 1 Introduction 2 11 Pre-Installation Preparation 2 12 Tool-Kit Recommendations 2 2 Installing the Compressor 3 21 Installing the solenoids 3 22 Installing the Pressure Switch 3 23 Assembling Installing the Air Filter 3 24 Using an Air Filter Extension Tube optional 3 25 Mounting the Compressor 4 3 Connecting the Air System 7 31 Running and Securing the Air Line 7.
I have been searching how to wire an ARB twin compressor but have not found specific instructions on exactly what to do. I am having some trouble with wiring up my arb twin compressor. Not certain where to tap the redyellow and bluewhite wires into the right source.
I recently purchased a trigger six shooter switch panel and i was curious on if i need to hook it up to a relay or not. The ARB Air Locker is a unique air operated unit for which the locking action is controlled by the driver with a push of a button inside the cab. Before you start zipping wires into place its always a good idea to test the final wire harness.
Constructed of lightweight high-strength engineering grade materials it incorporates quality components for. Once everything is wired and ready to go position your wires into place towards the battery first. It will also help dissipate the heat from the compressor which will allow it to run more efficiently.
All my normal electronics that I spliced wires are working correctly and all indicator lights properly reset. ARB AIR COMPRESSOR Service and Parts Manual Revision Date 211217 35. If the CKMTA1224 compressor is used for prolonged periods andor your vehicle is outfitted with ARB Air Lockers the ARB Manifold is required.

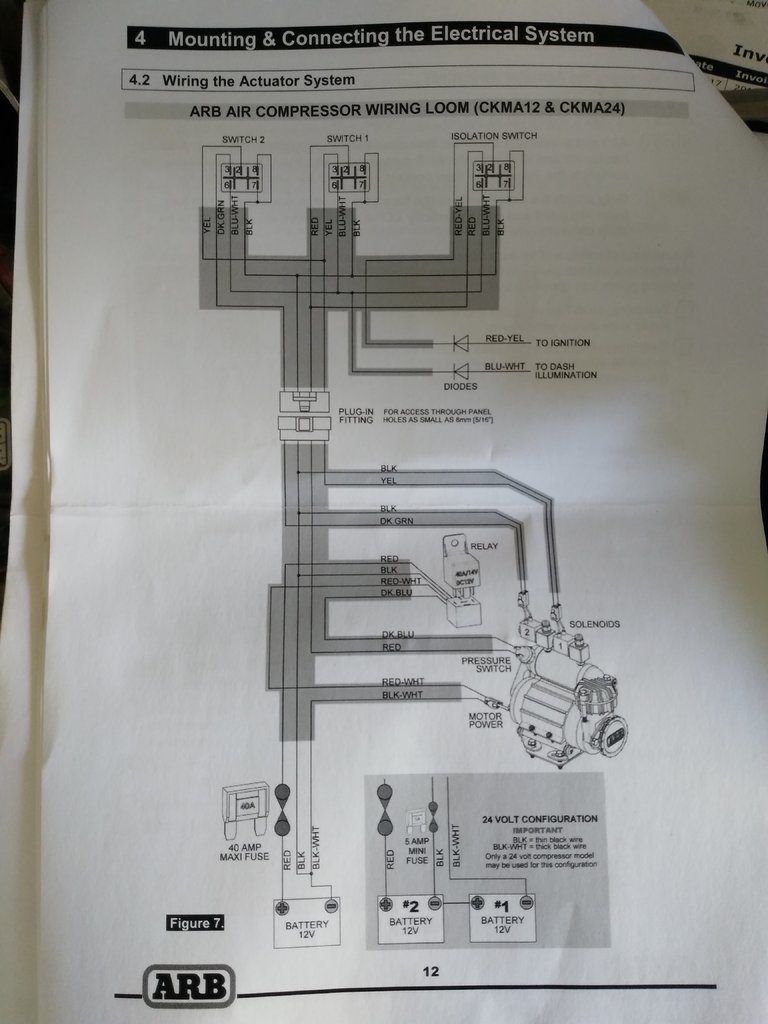

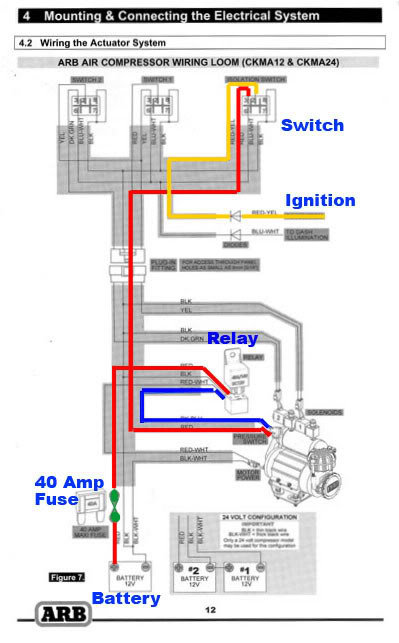

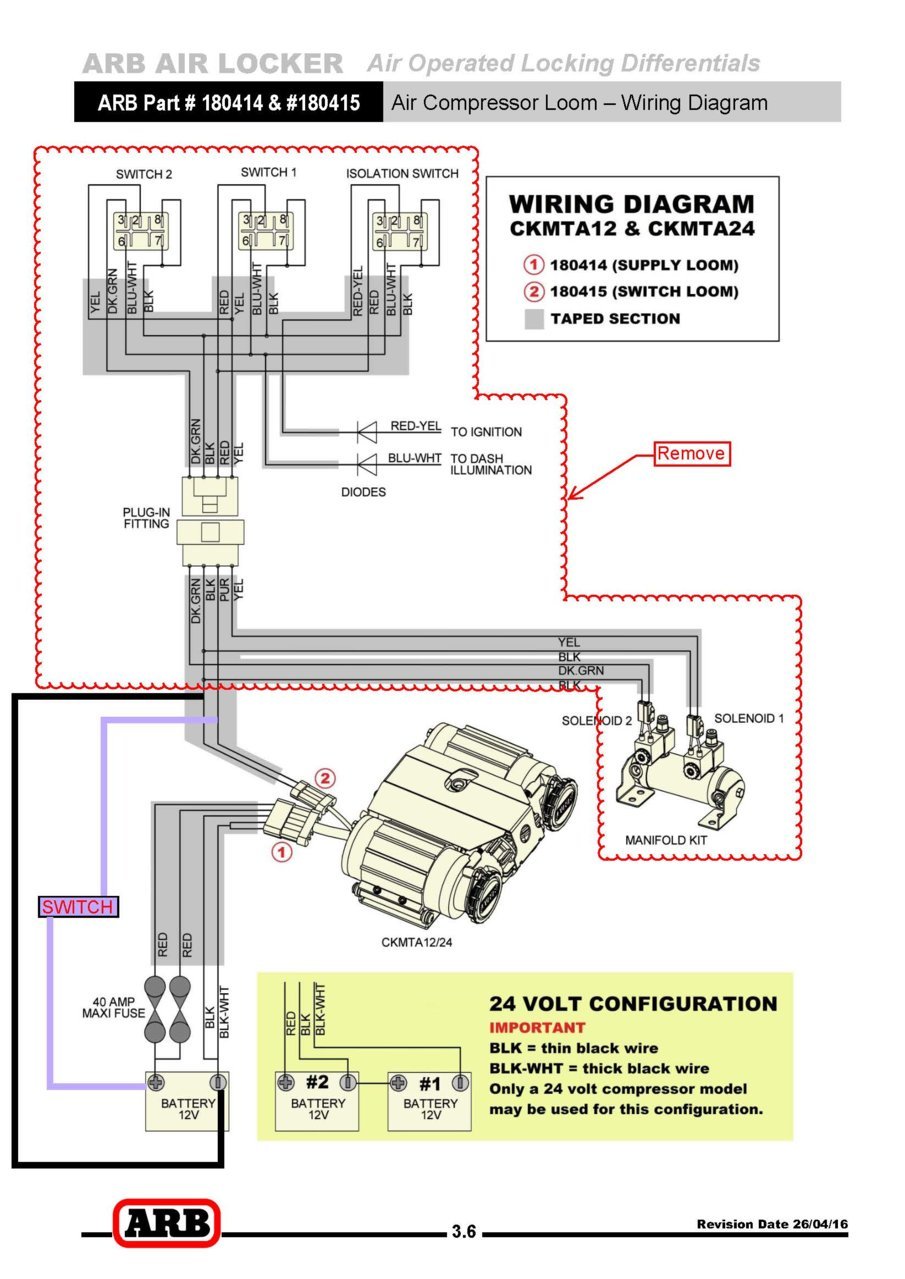

Picture of the CH4x4 switch wiring pinout. ARB AIR LOCKER Air Operated Locking Differentials 58 58 COMPRESSOR WIRING DIAGRAMS CKMTA SERIES 12V 24V-80A VEHICLE LOOMS 180414180415. Picture of the ARB-supplied wiring diagram.
I just finished up installing and wiring up my ARB CKMTA12 high performance twin air compressor 12V. ARB AIR LOCKER Air Operated Locking Differentials 58 58 COMPRESSOR WIRING DIAGRAMS CKMA SERIES 12V 24V-40A VEHICLE LOOM 180409 SWITCH TERMINAL IDENTIFICATION UP. Discussion Starter 1 Jun 12 2014.
High quality wiring loom with automotive grade alligator clamp type battery contacts and. Every ARB compressor will include a switch and switching harness. I just connected the positive load wires to my battery directly and then I clipped the ARB harness which is supposed to go to birds nest relays added spade terminals and ran the wires directly to my Spod.
Providing optimum power the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Its dedicated to the front locker and wont be used for anything else. I have reached out to the company and they told me to run the compressor off of a relay.
